This rider is intended for venue staff, production teams, and event organizers to ensure Mysticum's performance runs smoothly and meets our exacting standards. The rider includes all essential information on sound, lighting, and stage setup, as well as hospitality requirements and merchandise details.
For a comprehensive understanding, you can find videos demonstrating our setup, along with pictures and detailed riders for sound and lighting.
For any inquiries or adjustments,it is imperative that you reach out to
our dedicated contact persons:
Lights/Video:
Henrik Dinger
Email: Henrik.dinger@ct-group.com
Sound:
Sverre Daehli
Email: sverre.daehli@gmail.com
Phone: 0047 47273885 (Norway)
Your prompt communication with our dedicated team is crucialfor a smooth and successful event. Thank you for your immediate attention tothis matter!

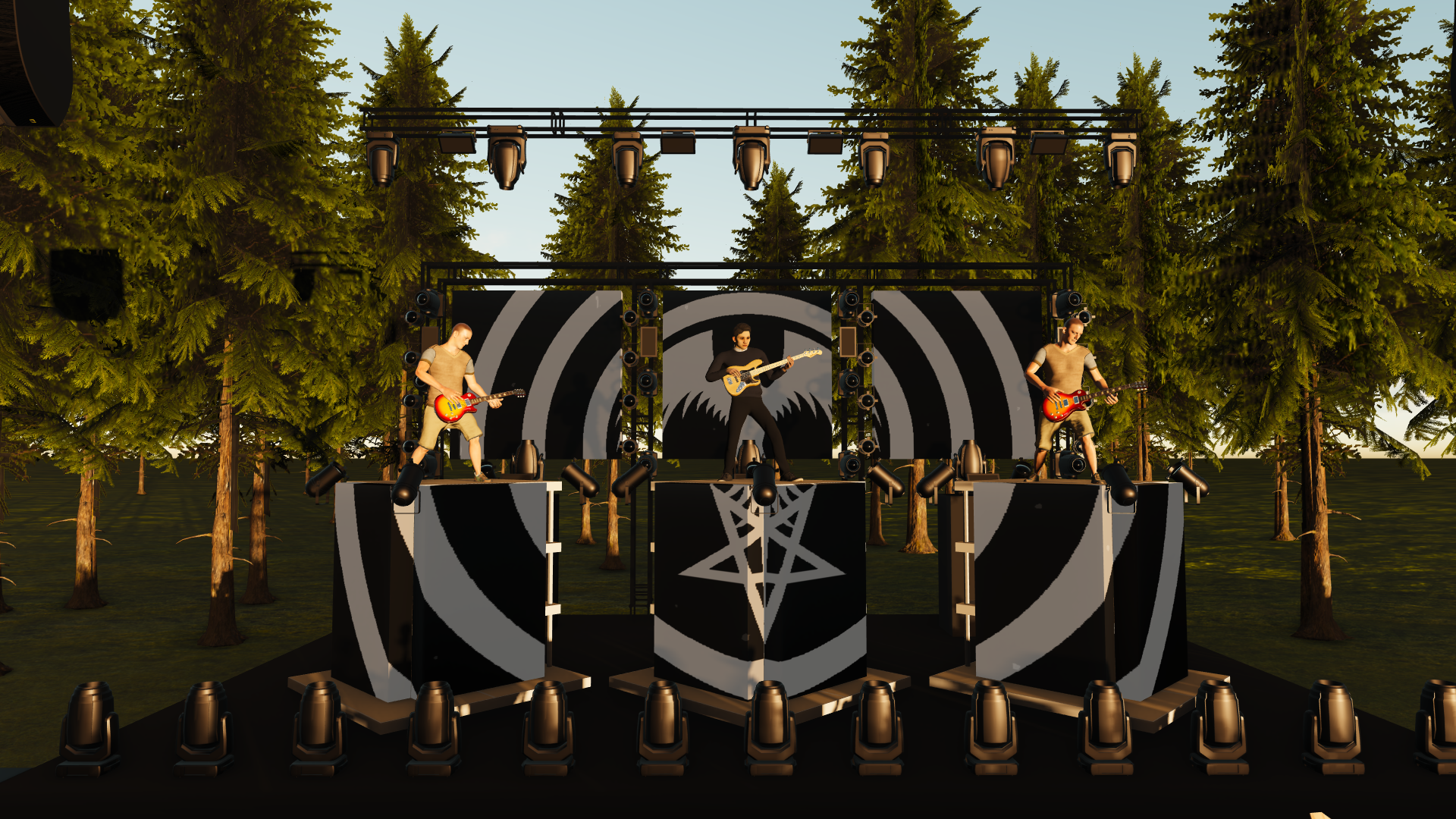

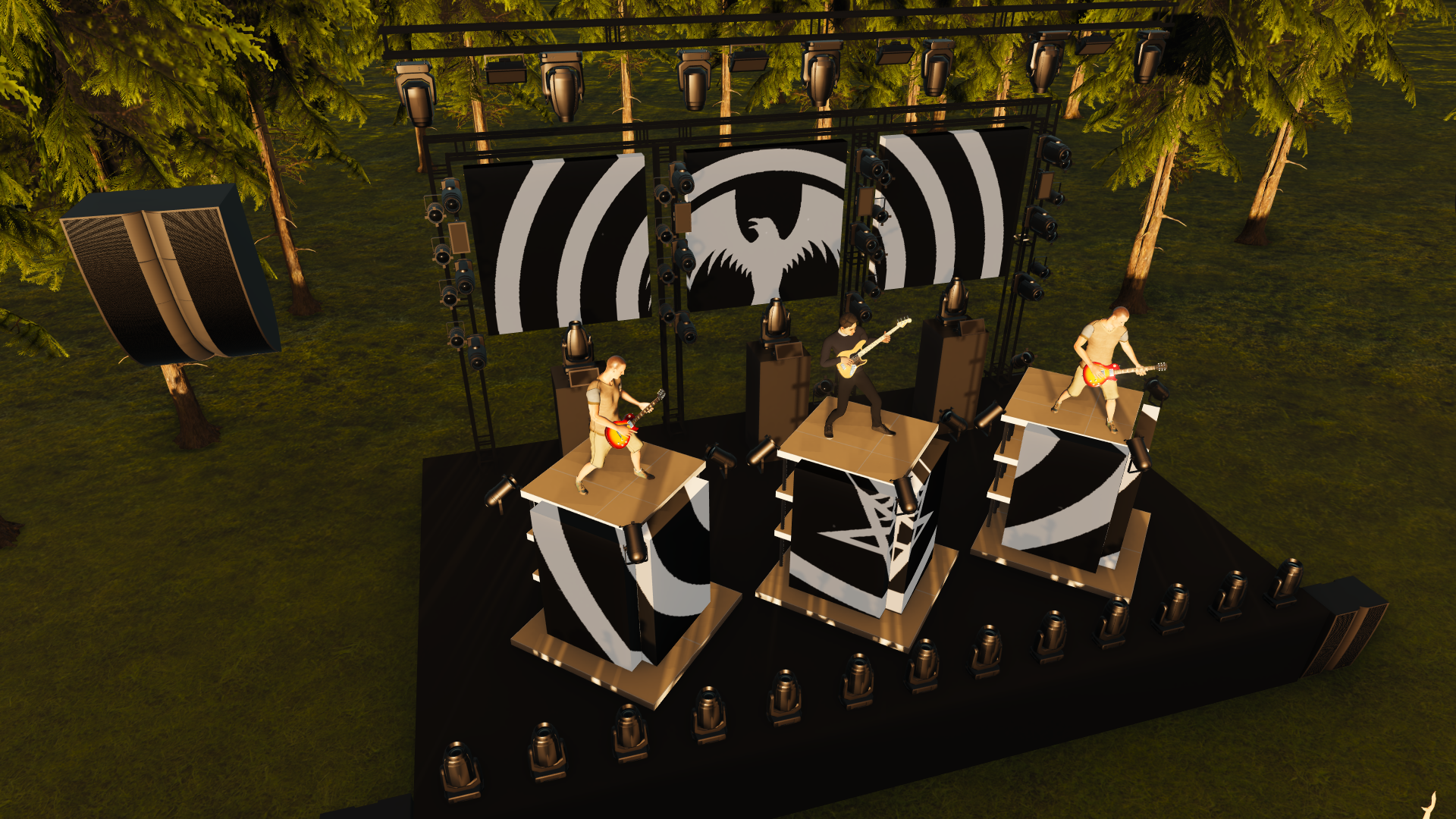

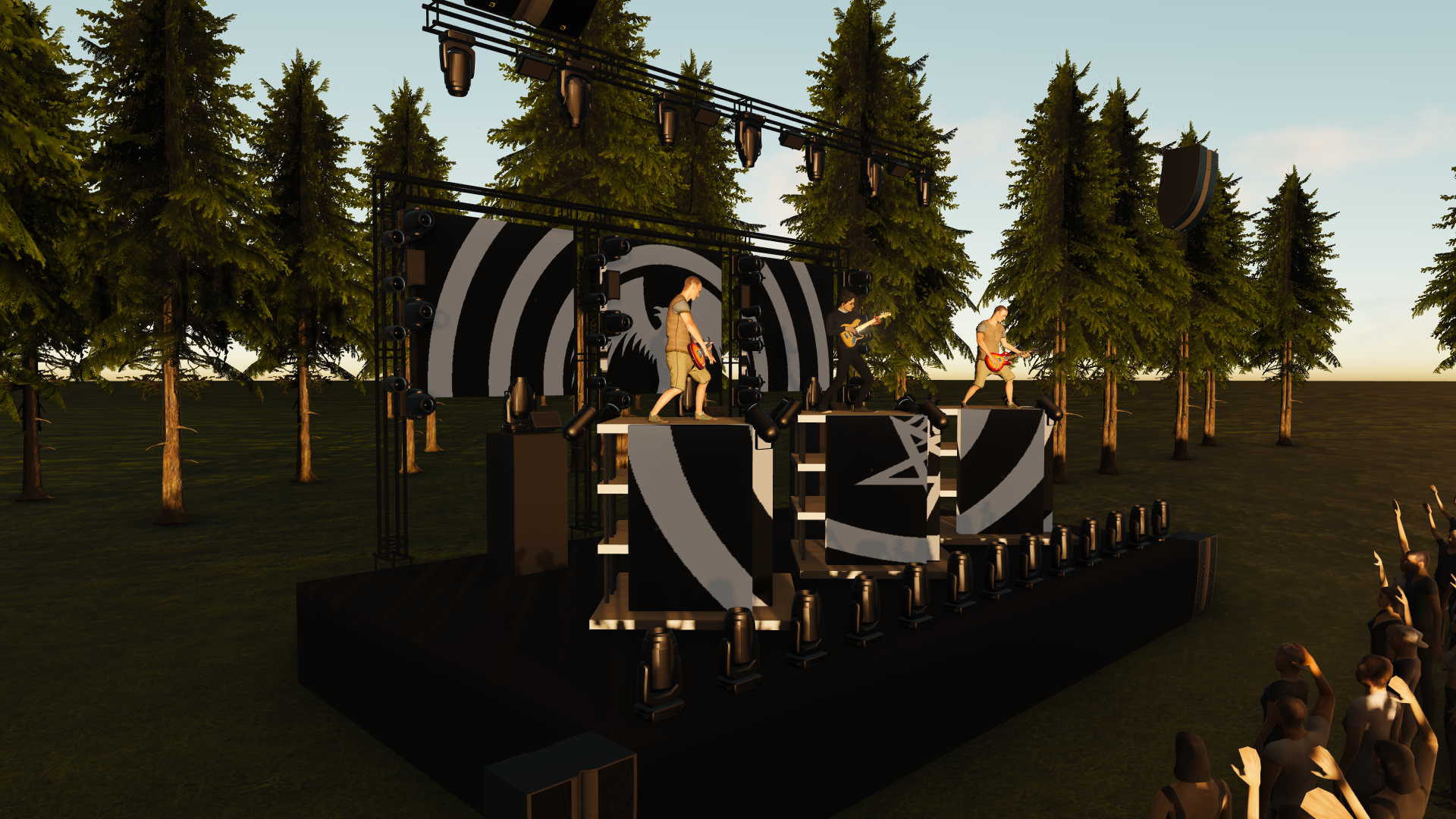

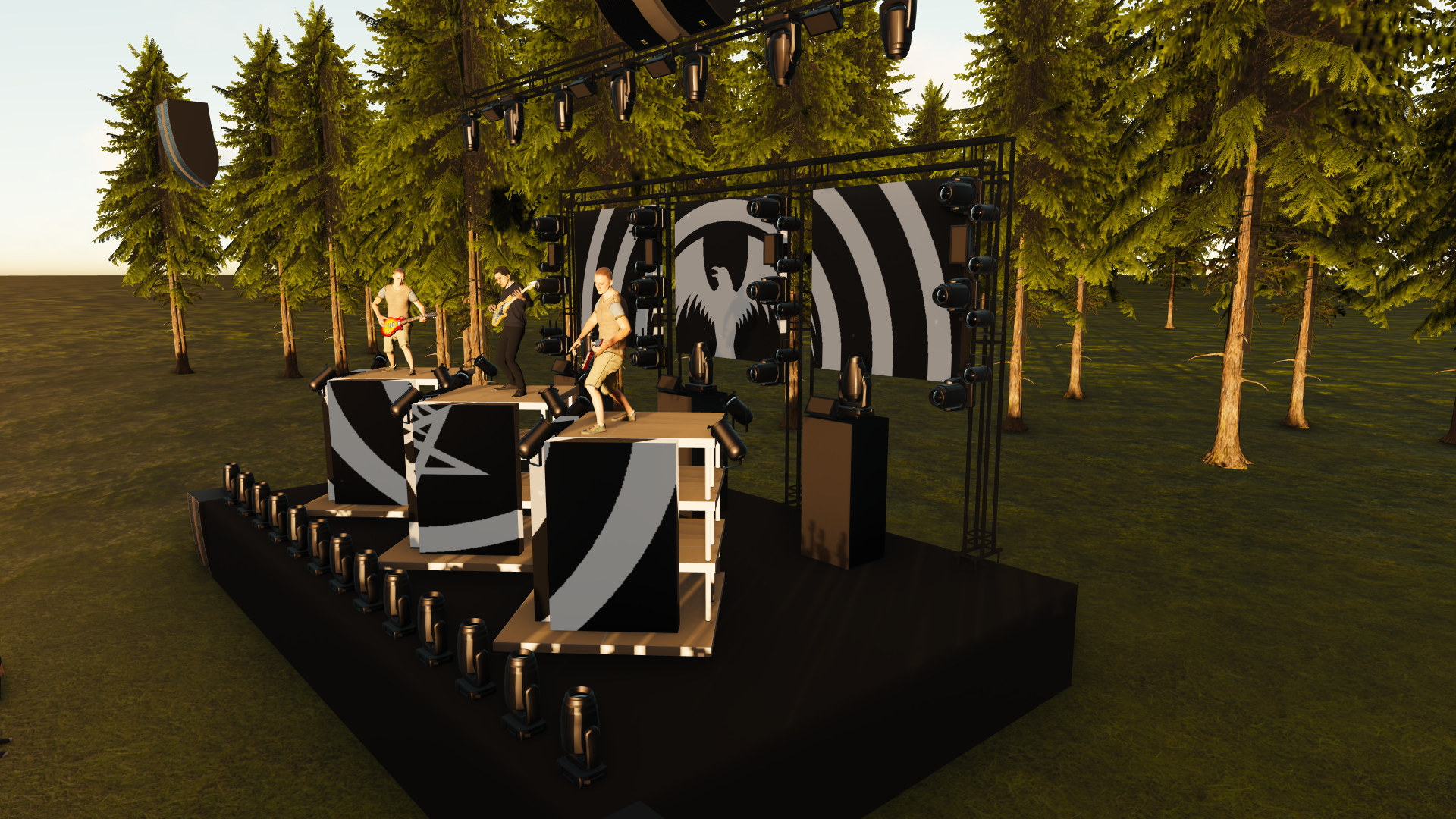

SUMMARY OF LIGHT FIXTURES
6 X Mac Viper Profile.
29 X Robe Mega Pointe.
11 X Atomic 3000.
28 X Par can CP 62.
3 X Par/profile in front truss. Not indrawing, part of festival rig.
CONTROL/ LIGHTING DESK
1 x MA2 Light / MA3 Light
ROOF
Fixtures in truss middle of stage,behind the risers:
3 x Movinghead Spot - must have a goodzoom and colourmix. min 1kW. Preferred Martin Viper Profile.
4 x Strobes - min 3kW or equivalent inLED. Preferred Atomic 3000.
4 x Beam light – min HRI 470.Preferred. Robin Mega Pointe.
BACKWALL
16 x Par Can CP 62 pair channels 4each truss.
7 x Strobes - min 3kW or equivalent inLED. Preferred Atomic 3000. 1 each truss.
12 x Beam light min HRI 470.Preferred. Robin Mega Pointe. 3 in each truss.
FLIGHTCASES IN FRONT OF BACKWALL
3 x Movinghead Spot - must have a goodzoom and colourmix. min 1kW. Preferred Martin Viper Profile. On top of tallflight cases 1.8m.
3 x Strobes - min 3kW or equivalent inLED. Preferred Atomic 3000. On top of tall flights in front of Vipers.
RISERS
12 x Par Can CP 62 on single channels.4 each riser. Side mounted.
FLOOR
13 x Beam light – min HRI 470.Preferred. Robin Mega Pointe. Lined up in one single row downstage.
SMOKE
2 x high output and qualityhaze/crackers.
2 x high output and quality fogmachines.
2 x powerful fans – DMX controlled.Enough fluid. We use a lot…

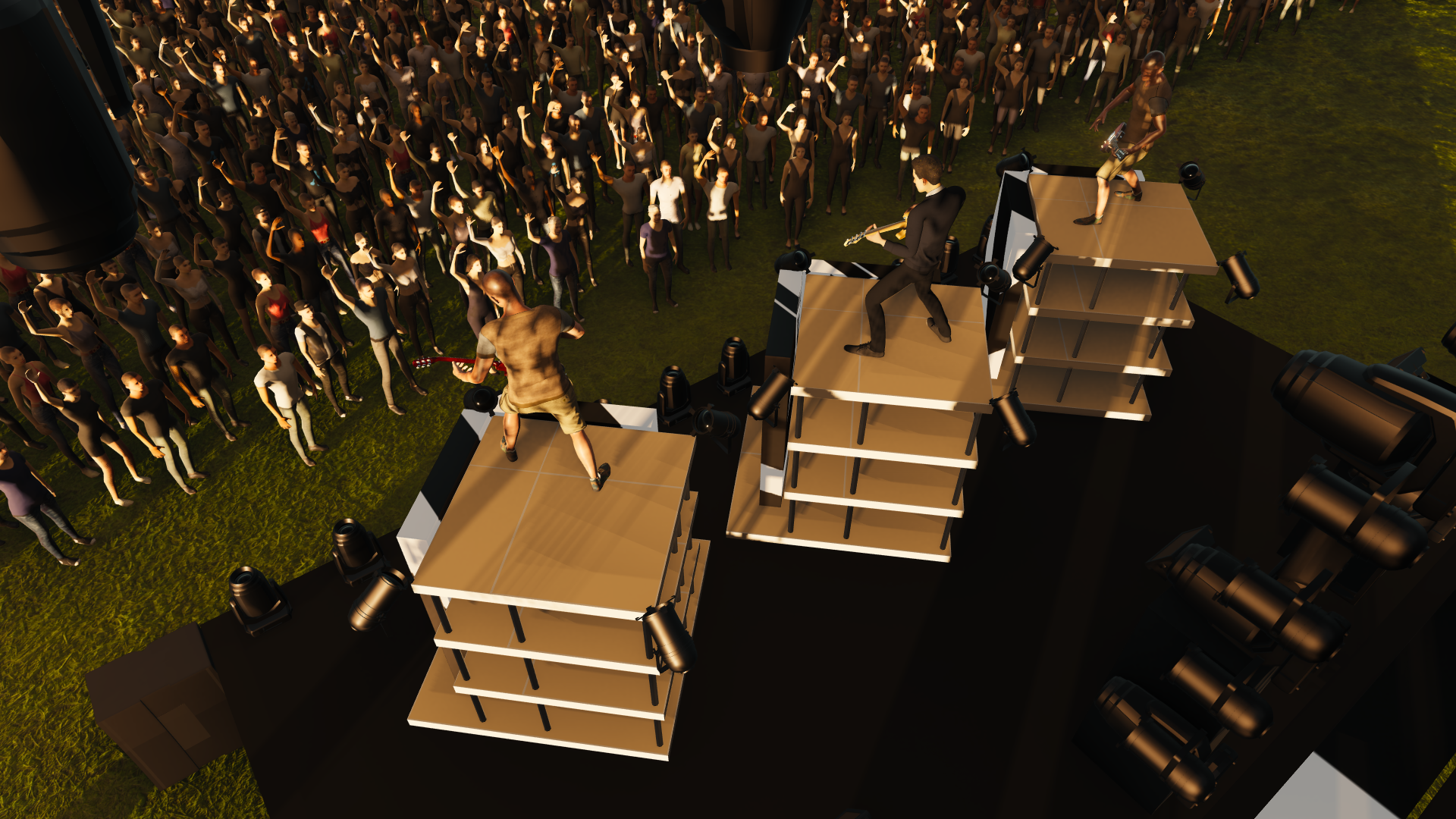

RISERS BUILD
3 x risers.
Top 1.5m x 1.5m Wide. 1.8m-2m High.
Bottom 2m x 2m. 0.2m High on wheels.
Video mounted in front on two sides.
VIDEO
3 x LED screens (A-C on drawing). 2.4mx 2.4m mounted in backwall 2.4m from floor to bottom of led-screen.
6 x LED screens (D-I on drawing). 1.8mhigh x 1.2m width. Two on each riser. Mounted in front of Riser. (on top ofbottom 2m x 2m riser).
All led-screen min 9mm pixel pitch.Preferred 6mm pixel pitch or better.
VIDEO SIGNAL
1 HDMI connector FOH to video system.
STAGE-CURTAIN
Stage-curtain in front of stage, toclose and open for changeover. If possible.
GENERAL
We need 2 smiling and competent systemtechs for light and video from get in to show ends.
All equipment is to be provided, setup and teared down by local crew/festival.
All equipment must be ready to use atget in.
We are flexible on fixture types if itis agreed in advance. Please contact us in advance to discuss possibilities.Quality fixtures are more important than amount.
We need 1 hour to test and programbefore the sound check. This cannot be in the changeover.
Lighting plot with fixture number andpatch must be provided at least 3 weeks in advance of show.
We look forward to visiting you!
